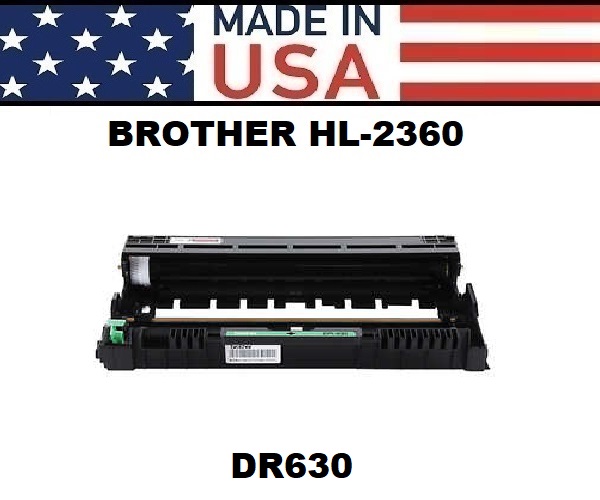

BROTHER # DR-630 DRUM – USA Made

Every time you install a new Brother DR-630 Drum you must manually reset the printer’s drum counter using the following instructions that pertain to your printer.

To reset Brother HL-L2300D, HL-L2320D, and HL-L2321D Drum Counter
(1) Make sure that the front cover is open.
(2) Press and hold Go for about four seconds until all of the LEDs light up. Once all four LEDs are lit, release Go.
(3) Close the front cover.
(4) Make sure the Drum LED is now off.

To reset Brother HL-L2305W, HL-L2340DW, HL-L2360DN, HL-L2360DW, HL-L2361DN, HL-L2365DW, and HL-L2366DW Drum Counter
(1) Make sure that the front cover is open.
(2) Press and hold OK for about two seconds to display Drum Unit, and then press OK.
(3) Press arrow to display Reset and reset the drum counter.
(4) Close the front cover.

To reset Brother DCP-L2500D, DCP-L2520D, DCP-L2520DW, DCP-L2540DN, DCP-L2540DW, DCP-L2541DW, MFC-L2680W, MFC-L2700D, MFC‑L2700DN, MFC-L2700DW, MFC-L2705DW, MFC-L2707DW, MFC-L2701D, MFC-L2701DW, and MFC-2703DW Drum Counter
(1) Make sure that the front cover is open.
(2) Press and hold OK for about two seconds to display
Replace Drum?. (3) (DCP models) Press arrow to reset the drum counter.
(MFC models) Press 1 to reset the drum counter. (4) Close the front cover.

To reset Brother HL-L2380DW, DCP-L2560DW, MFC-L2720DW, and MFC-L2740DWvDrum Counter
(1) Close the front cover.
(2) Press [X] to interrupt the error.
(3) Press [Tool] image (Settings) All Settings Machine Info. Parts Life
(4) “Drum” will show
(5) Press # on key pad until the Touch screen message changes to “Reset Menu”
(6) Press Drum, and then press [Yes] to reset.
(7) The message “Accepted” will display
(8) Press [Home] image.

Swap your toner cartridge into the new drum, install the new drum and toner into the printer, and leave the front door open
